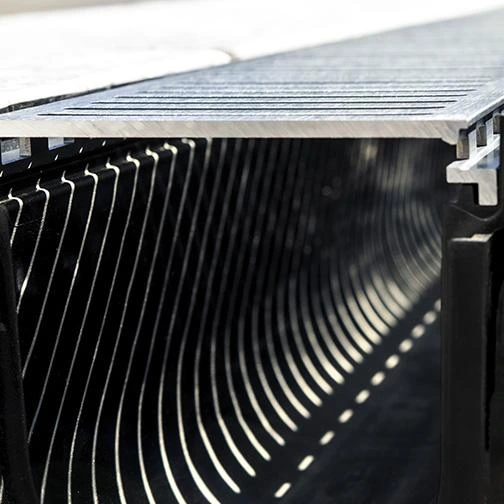

128 Storm Water Midnight Next Gen (128SWGMNXT)

A stylish replacement top for your existing storm water linear drainage. Engineered to withstand heavy loads the stormwater grate is appropriate for any areas where large volumes of water need to be taken away. Perfect for driveways and alfresco areas. All of our grates are 100% UV stabilised and come with a minimum 25-year guarantee of no discolouration and a Lifetime Rustproof Warranty.

• 19mm deep (top only) x 128mm wide
• 5.6m lengths available (customisable onsite)
• Easy to cut onsite for desired length
• Replacement top for plastic storm water drainage
• No water tracking
• UV stable
• Easy to remove for cleaning
• Rated for loads up to 10.3 t

Colours
Midnight Black
Silk Silver

Product Care
Initial cleaning:
This cleaning should take place after installing your Lauxes linear floor grate and shall involve the removal or wiping of dust, dirt, glue (silicone) or any form of visual “deposits” that sit on the anodised surface. These can quickly be removed with a dry or damp cloth.

Cleaning:
Contrary to what people say, linear floor drains are easier to maintain and can remove up to 80% more hair debris and grime than regular drains. Our easy roll out system, as featured in the tile insert range, enables the consumer to roll back the top grate for easy cleaning underneath.

Anodised finish should be washed down on a regular basis (at least once every six months in less severe applications and more often in marine or industrial applications). The soot and grime which builds up gradually on the surface from time to time contains moisture and salts which will adversely affect the anodised coasting and should be removed.

Whilst the shower recess is in constant use of water flowing through, outdoor applications such as balconies and around the pool areas would benefit from the occasional hose down throughout the year to prevent any build-up of external elements such as dust, sitting on the grate for an extended period.

Soapy water is the recommended method of cleaning. Mild detergents can be used to wipe and remove any matter or debris caught in drainage area. Using a mild cloth (nylon cleaning pad or brush) to run over surface and warm water to rinse and dry with clean cloth.

Products such as Jiff and ammonia based products may also be used, however we recommend wiping the area directly after use to avoid any potential discolouration.

Do not use abrasive or harsh chemicals such as acidic products on the grates. Also, do not use excessive force to remove any stubborn marks.

Although anodised aluminium possesses exceptional resistance to corrosion, discolouration and wear, harsh chemicals and elements can tamper with its overall appearance. For example, construction soils such as mortar or acid should be removed as soon as possible and not allowed to dry. Other aggressive alkaline or acidic products should not be used.

Warranty
Lauxes grates are carefully designed and manufactured to the highest standard with meticulous attention to detail. It is because of this care we stand behind your recently purchased unique, cost effective and rust proof product.

Damages arising from improper/insufficient/negligence care or installation not in accordance with AS/NZS 3500.2 or manufacturers specifications will void the product warranty.

If at any time the product itself should develop any defect, Lauxes Grates agree to correct the defect(s) without charge to the registered purchaser. This guarantee does not provide coverage of repairs necessitated by normal wear, misuse, accidental damage or as a result from changes in temperature.

Rustproof Warranty
A lifetime rustproof warranty is offered on all Lauxes floor grates to the original owner of the product. This guarantees that should all or part of the installed Lauxes floor grate* develop rust to the physical structure of the grate; Lauxes Grates shall replace all or part of the warranted product at no cost to the consumer, provided the steps below have taken place:

• Lauxes floor grates**were installed by a licensed tradesman and in accordance with AS 3740-2010.
• Primary clean must also take place immediately after installation as outlined in our Product Care information.

Carefully Designed

Lauxes Floor Grates are carefully designed and manufactured from anodised aluminium to create a robust, cost effective and versatile drainage solution.

With Lauxes Floor Grates there is no compromise on functionality or style when creating designer living spaces.

Key Features
Rustproof.
Lightweight.
Top grate easily removed for cleaning.
Different colour choices to suit application.
Easy to cut to desired length.
No welding required.
No major plumbing involved as waste can be positioned anywhere along the bottom tray.
Ability to extend beyond 5.6m with the use of Lauxes joiners.
